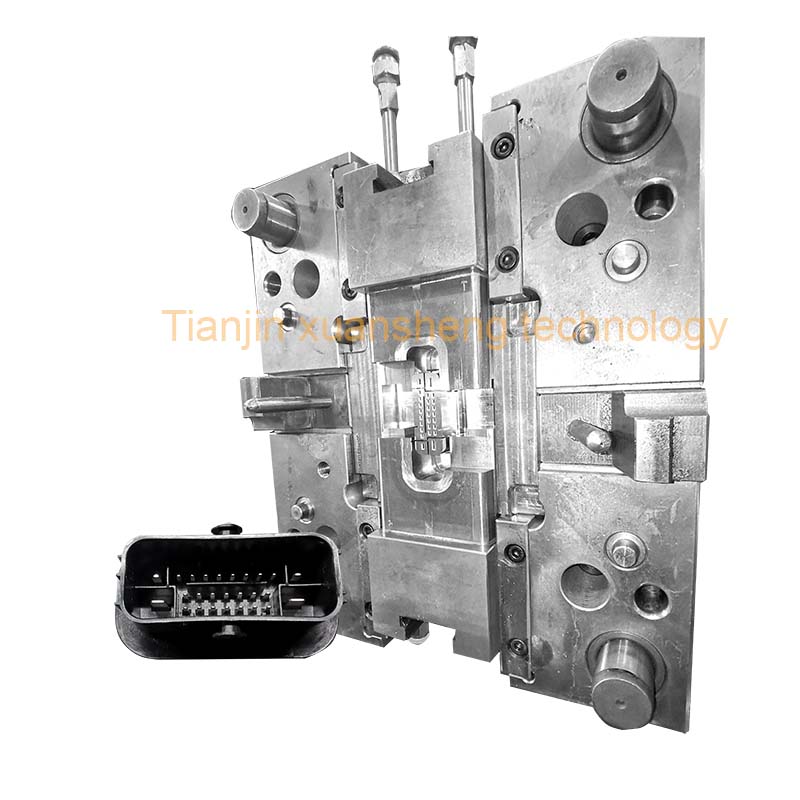

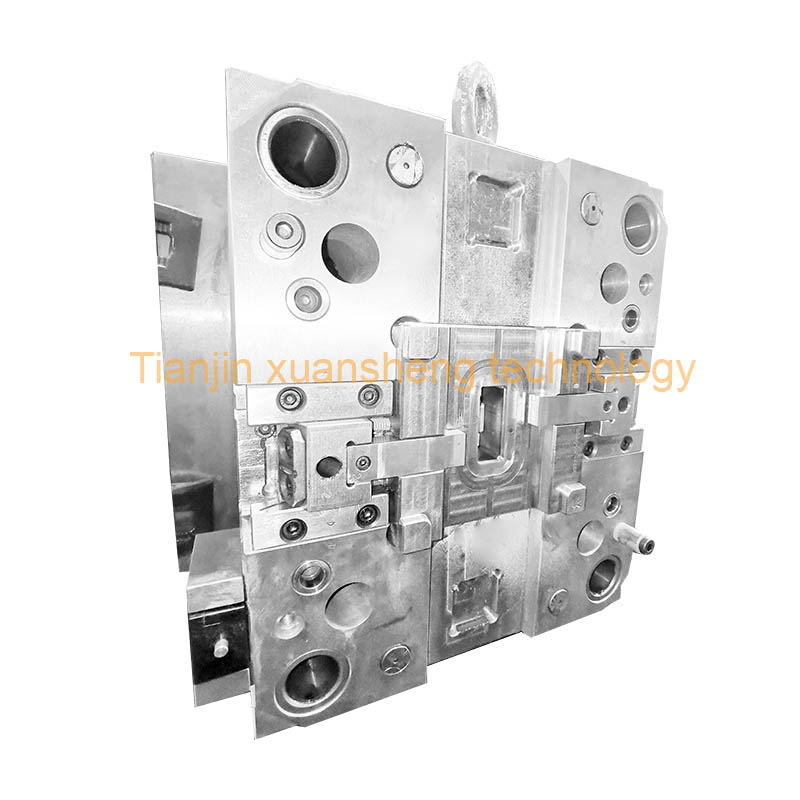

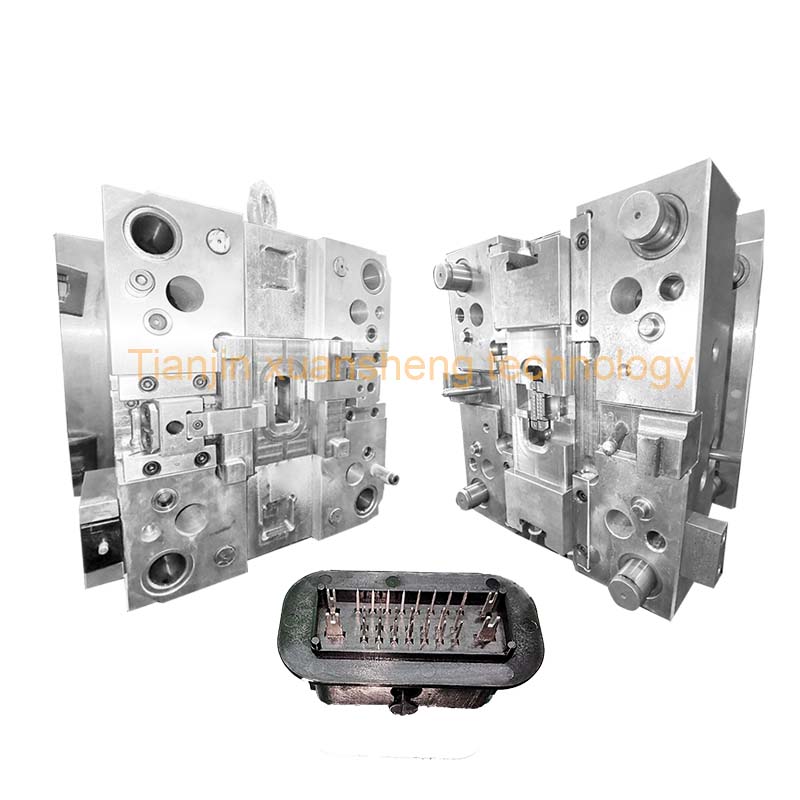

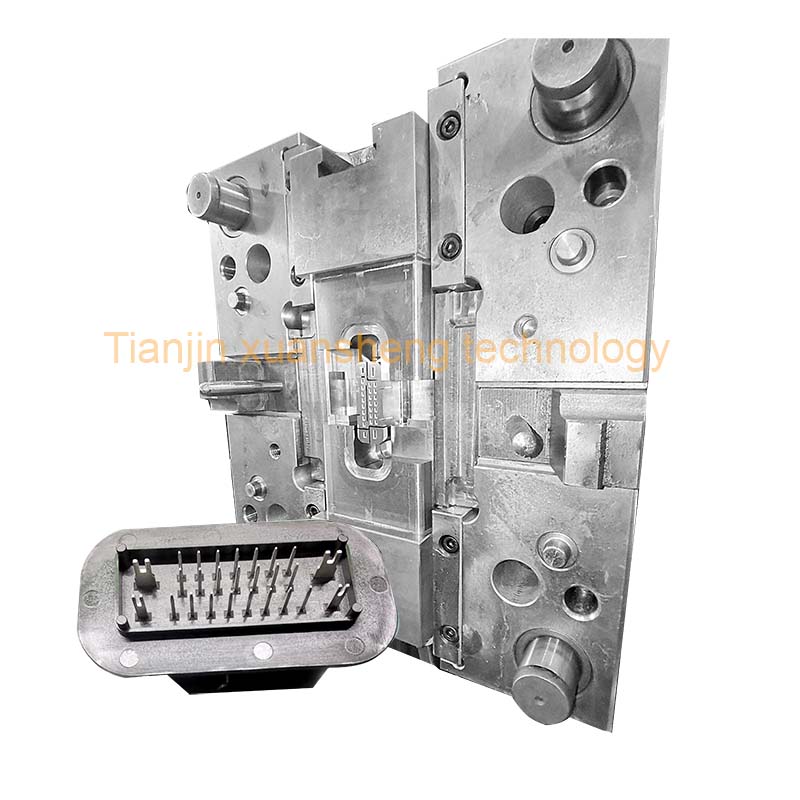

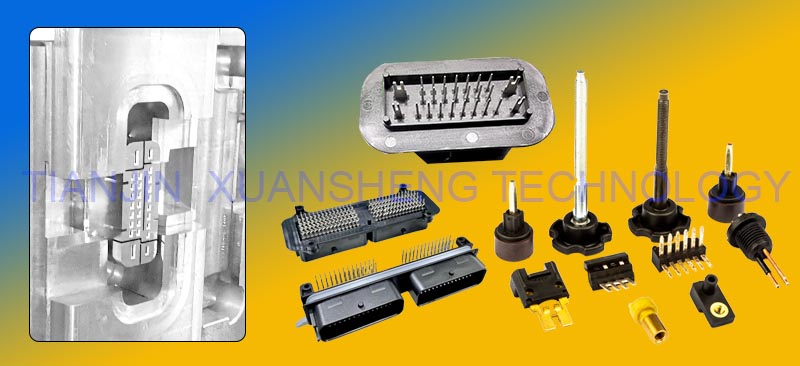

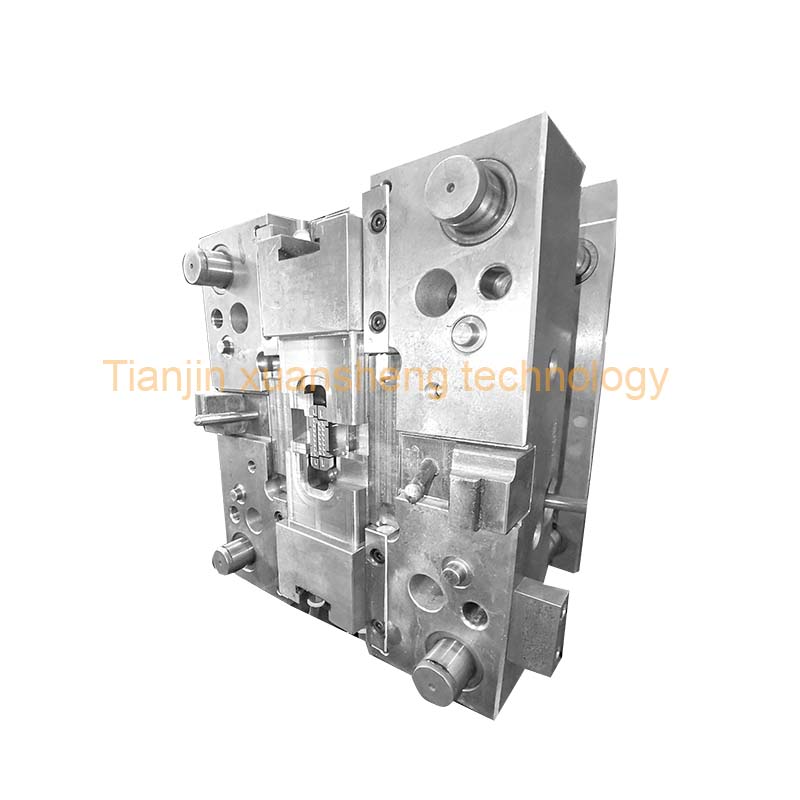

Pin connector insert mold overmolding precision mold

Many connectors adopt PBT materials, it's very difficult to be molding. Have to adopt special molding technology.

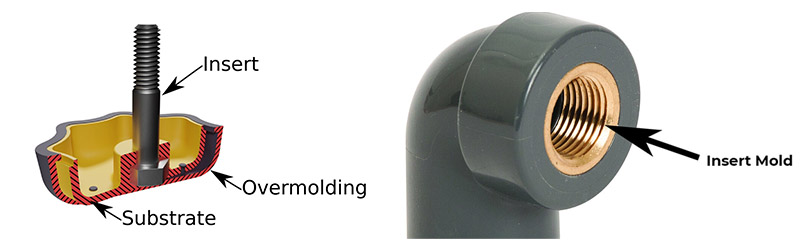

Tianjin xuansheng technology master many special injection technology.  Include PBT injection molding, 2 color molding, over molding mold technology. For pin connector insert mold have rich experience.  Not only processing pin connector insert mold, but connector overmolding mass production.

Following are some parameters of the mold:

Electrical connectors, also known as connectors. A device that connects two active devices to transmit current or signals. The male and female terminals can transmit information or current through contact, also known as connectors.

Although the classification of plug-in product types is somewhat confusing, technically speaking, there are only two basic ways to classify plug-in product categories:

① According to the external structure: circular and rectangular (cross-section);

② According to operating frequency: low frequency and high frequency (bounded by 3MHz).

According to the above division, coaxial connectors belong to circles, printed circuit connectors belong to rectangles, and popular rectangular connectors have a trapezoidal cross-section, which is similar to a rectangle. The frequency division of low-frequency, high-frequency, and radio waves based on 3MHz is also basically consistent.

As for other types that can be classified according to their purpose, installation method, special structure, special performance, etc., they often appear in publications and manufacturer's promotional materials. However, they are generally only used to highlight a certain feature and purpose, and the basic classification still does not exceed the above classification principles.

Considering the technological development and actual situation of connectors, based on their universality and relevant technical standards, connectors can be divided into the following categories (sub categories):

① Low frequency circular connector;

② Rectangular connector;

③ Printed circuit connectors;

④ RF coaxial connectors;

⑤ Fiber optic connectors
