Molded Case Circuit Breaker electronic control switch precision mold

Circuit breaker is one kind of electric control switch. The circuit breaker includes molded case circuit breaker, miniature circuit breaker, frame circuit breaker. Tianjin Xuansheng have rich experience in these products precision mold and injection molding mass production.

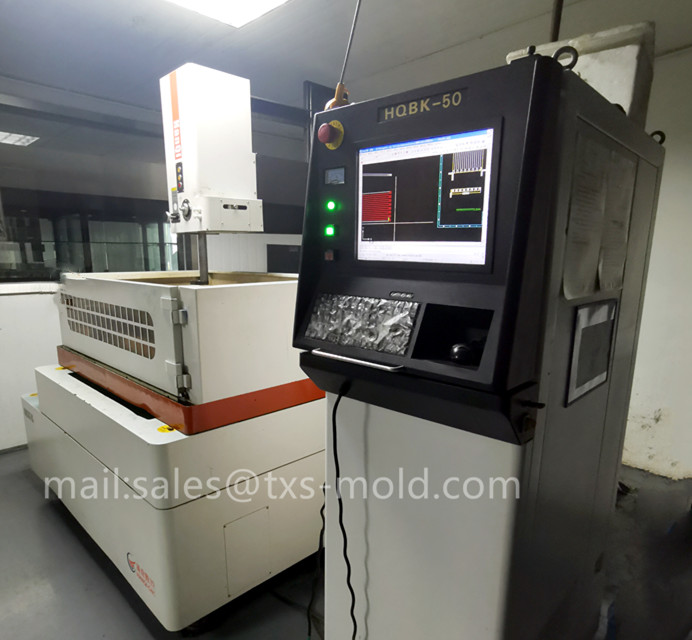

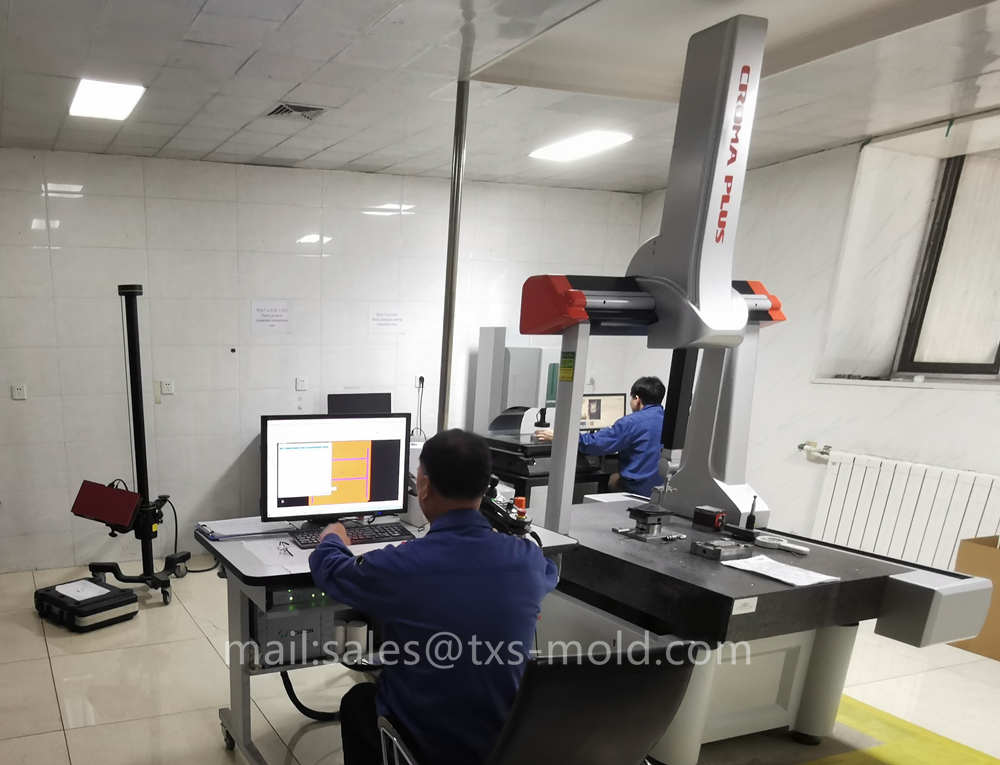

Tianjin xuansheng technology owned world-class equipment, guarantee the mold high precision and good quality. we start our projects from DFM, realize smart injection molding, avoid adjust the mold in further processing, save your time and costs.

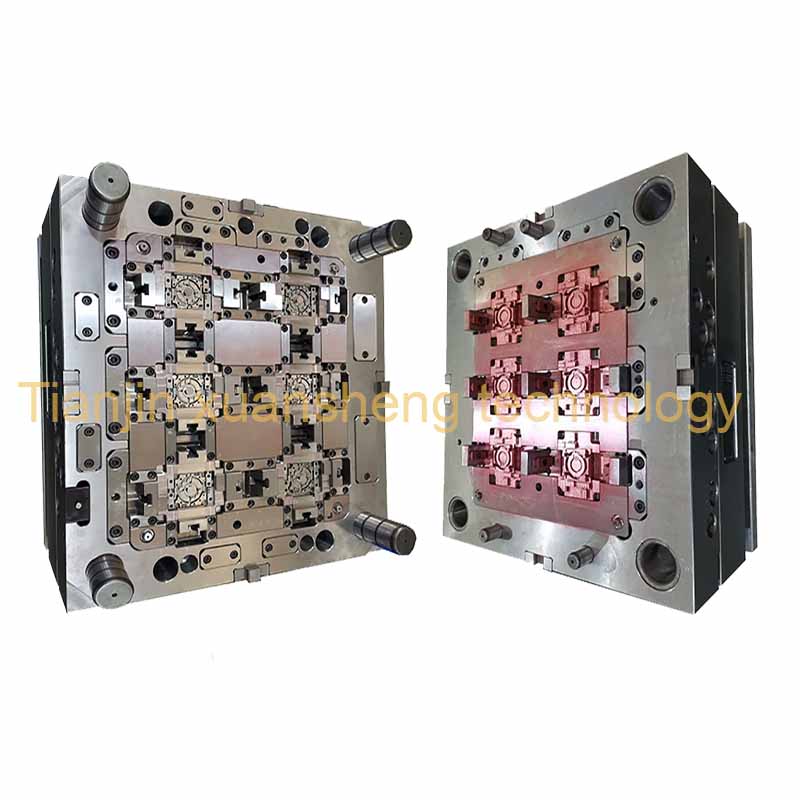

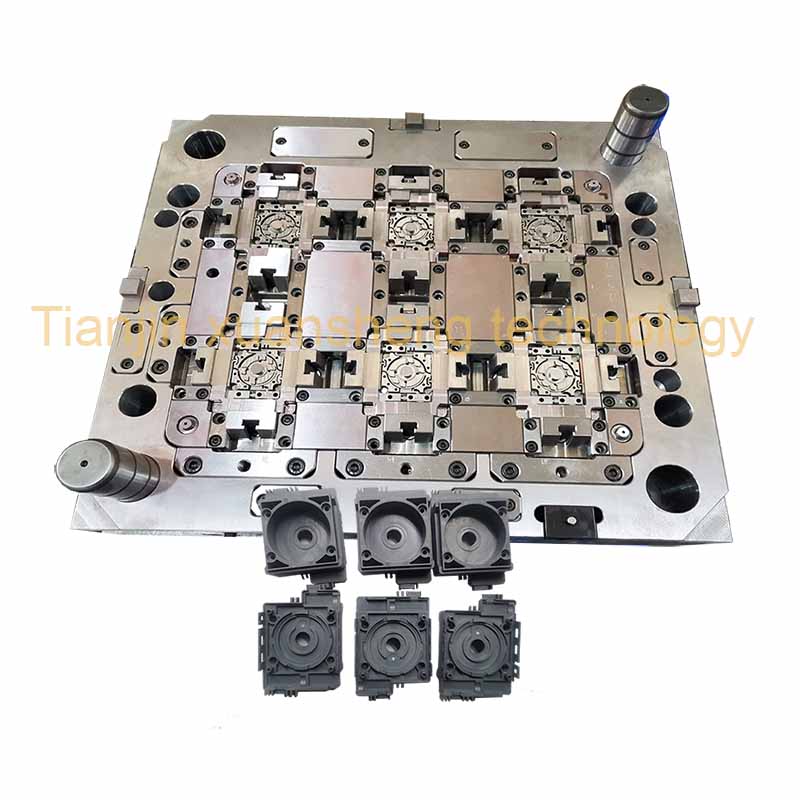

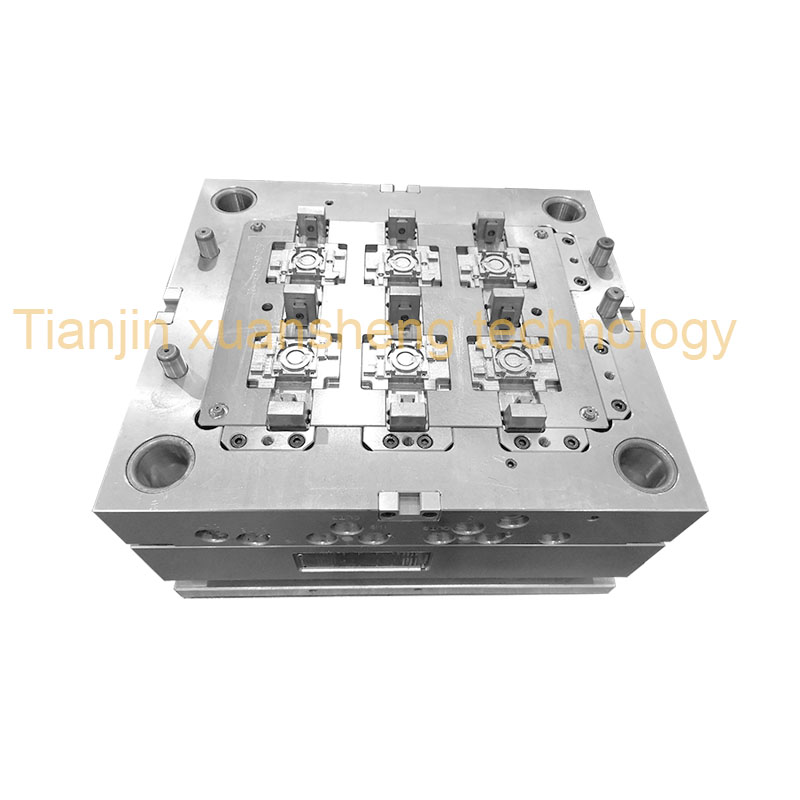

Molded case circuit breaker swift mold has 6 holes and uses Yudo needle valve type hot runner. Each hole has 4 sliders, and the mold size is approximately 450 * 550 * 410mm. The weight of the electronic control switch mold is 620kg.

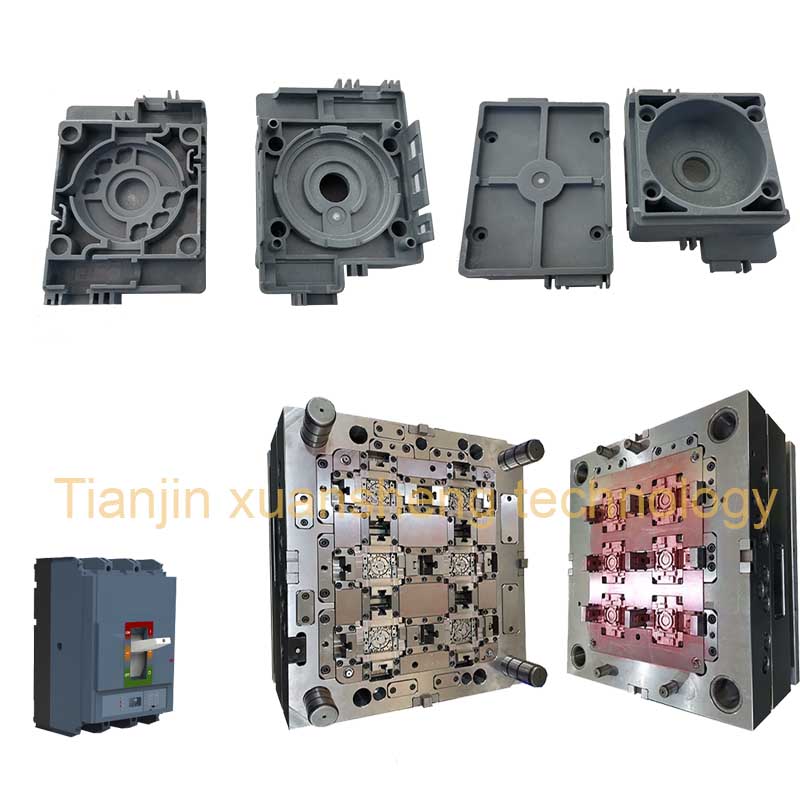

Electronic control switch is composed of two lids, with a material of PA6+GM30%. We need to ensure the size and accuracy of each cavity mold to ensure product interchangeability

Electronic control switch has a size of 45.2 * 52.7 * 23.2mm for the lower cover and a weight of 6.5g. The size of the upper cover is 45.2 * 52.7 * 25.2mm and the weight is 6.8g.

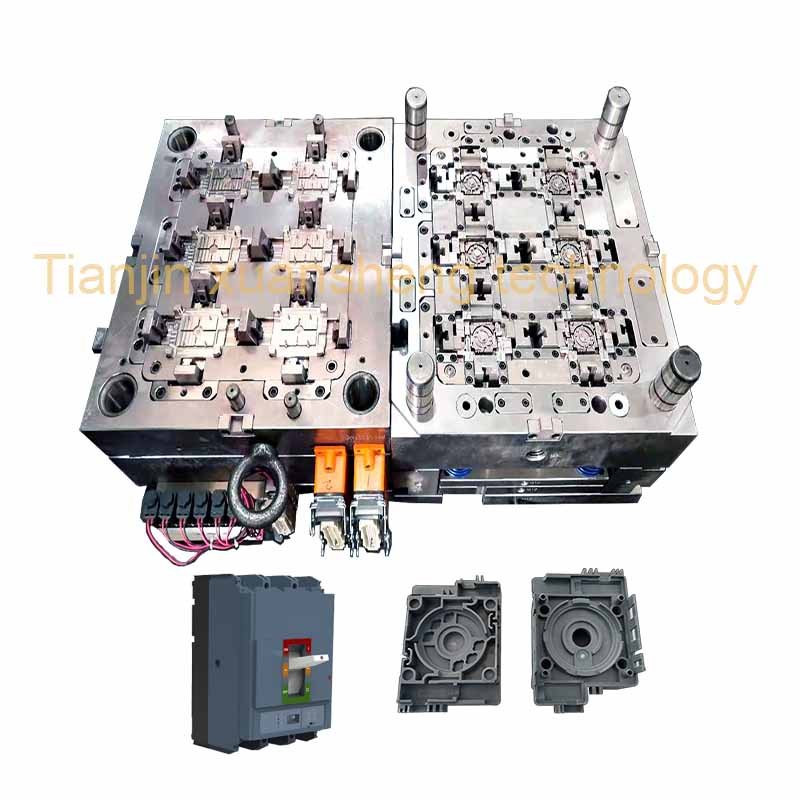

The whole set molded case circuit breaker swift mold combined by several parts, such as cover, bottom, mainbody, switch, etc.

Following is some parameter of the mold:

We are a one-stop service manufacturer of electronic control switches, including modifying the appearance of electronic control switches, the feasibility of electronic switch material test, and the simulation mode flow analysis of switches.

Thank you for your visit our web. If you have any demand for precision mold or molding products, welcome to contact us at any time. Professional service will be provided by our 30 technology team.
